Description
Mariner 28CF is a coastal marine fishery boat, which requires high standards of professional fishermen.
The vessel designed and built in accordance with the Nordic Boat Standard 1990 rules.

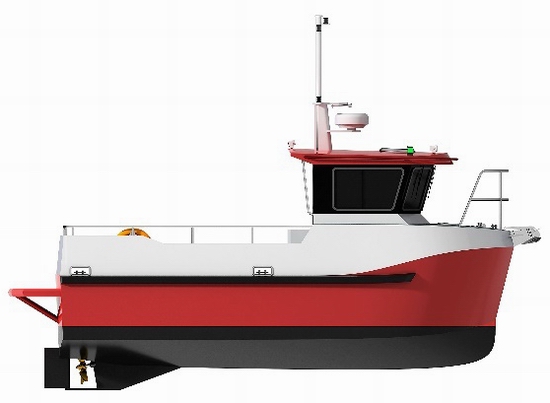

Architectural solution: a mono hull with an engine room in the aft part, a cargo hold in the middle and a pilot room and cabin with berths for two people in the forward part.
The hull is made of aluminum alloy, which increases ratio of the payload capacity to the fuel consumption unit and reduces running coasts.
The innovative design of hull lines with a bulbous bow, provides a longer hull length on the waterline compared to a traditional hull and accordingly greater seaworthiness, a decrease in the amplitude of longitudinal pitching and improved fuel economy.
The vessel has a large working deck, cargo hold for fish containers.
A fishing gear for work as a stern trawl, longline, jigging, potting, net, seine, etc can be exposed on the working deck.
The propulsion equipment installed on board corresponds to the Commercial rating.
Thanks to its unique layout, the Mariner 28 is a versatile vessel and can be used for various purposes, such as a work vessel, a charter sport fishing vessel, a water taxi, etc.
The vessel can occasionally be operated in the ice brush.
Specification Mariner-28 CF Commercial Fisher:
LOA 9,19 m (Length of hull 8,0 m)
Weight 6 t
Beam Beam 3,5 m
Crew up to 6 ps
Draft 1,2 m
Engine Diesel: Hyundai Seasall S270 ZF63 IV 270 h.p.
Fish storage (aprox) up to 9,5 m3
Fuel tanks 2 х 500 l
Payload up to 4,5 t
Max speed up to 20 kn
Classification – CE: B-Offshore, Nordic Boat Standard 1990
 |
 |
STANDARD EQUIPMENT:
- The aluminum alloy hull divided into 4 waterproof compartments
- Stern gate and platform
- Propulsion: diesel Hyundai Seasall S270P/ZF 63 IV, four blade propeller
- Steering gear
- Stern drive: electro hydraulic type
- Tanks: fuel tank 2 x 500 l
- Fish hold up to 9,5 м3
- Electricity: 12V – 120A alternator, coast charging, starter Battery
- Accommodation: pilot house with the cabin with two berths
- Navigation equipment: navigation lights, magnetic compass
- Lighting: lighting of the superstructure, bow cabin and engine room, deck lighting
OPTIONS
- Hull: ice hull reinforcement
- Accommodation: sink counterm, porta potti
- Tanks: fresh water tank 60 l
- Fish hold: Insulated hold
- Electricity: Diesel Generator up to 10 kW, service battery
- Deck equipment: Hydraulic crane Fassi 900 kg
- Anchor spire
- Bow thruster
- Technological equipment: fishhold cooling – 5 / + 5 С, hydraulic unit for fishing equipment, water pump
- Isolated fish container 700 L (h 870 мм x l 1200 мм х b 1000 мм)
- Fishing application: stern trawl, long line, gigging, potting, seiner, gillnets
- Cabin heating / cooling
- Diesel air heater
- Air condition
- Navigation equipment: GPS + Echo sounder + Radar,
- VHF radio
- Auto pilot
- Color fish finder
- Lighting: search light, navigator lamp
- Safety equipment: life jackets, life buoys, life raft
- Firefighting equipment: extinguishers СО2
