FRP hull (optional: marine grade aluminum)
LOA 14,9 m
BEAM Max 5.20 m
Draft (by hull, maximum load) 1,58m
Draft (maximum load) 2,12 m
Displacement (full) up to 48000 kg
Payload (max, with full tanks and fish storage) 32000 kg
MAX SPEED 12 knots (up to 25 kn with a more powerful engine, without load)
Crew 4 pax
Engine: 300/385 hp(Volvo TAMD 121D, IVECO or Doosan)
Reduction gear: Twin disc 509 Ratio: 3:1Ratio: 3:1 (or Doosan)
AUXILIARY MAIN GENERATING SET 2 x Betamarine20kVA (or up to 130 kVa)
The longlineris fully equipped with International standard marine equipment that responds to SOLAS-MED, COLREG, SMDSM (division 219-22), division 213 (pollution) and 211 for stability.
The vessel is equipped with 2 split trawl winches of 120HP with 2100 capacity, 16.5mm DN wire and hauling speed of 1.5m/s. The vessel is also equipped with one fresh fish hold
of 5.5 m3 (0?5°C), one frozen fish hold of 24m3 (?18°C) and a working area of 40m2. The vessel is equipped with 2 generators Beta Marine of 20kVA generating 380V, 220V and 24V
for the LED lighting, A/C, the fishholdsand the hydraulic system.

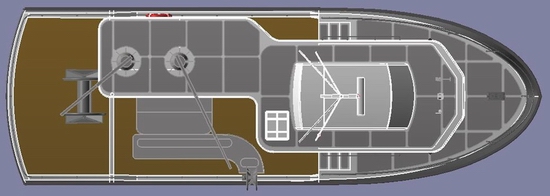

The vessel features a forward wheelhouse with accommodation below and fish holds amidships.
385-450 hpdiesel turning 50 inch 4-5 blade prop (twin disc MG5114 DC gearbox). Additional machinery includes two auxiliary engines for hydraulic and 240v power, bow thruster driven
through the main engine gearbox PTO.
The main task of such a vessel is preserving the fish in best class condition for best commercial prices. All fish catch operations are optimized for quick and safe work on deck.
GENERAL:
•Basic Using –Longliner/Trawler
•Classification Bureau Veritas –2nd category
DIMENSIONS AND WEIGHTS
LOA 14,9 m
BEAM Max 5.20 m
Draft (by hull, maximum load) 1,58m
Draft (maximum load) 2,12 m
Displacement (full) up to 48000 kg
Payload (max, with full tanks and fish storage) 32000 kg
MAX SPEED 12 knots
Crew 4 pax
ENGINES
300/385 hp(Volvo TAMD 121D, IVECO or Doosan)
Reduction gear: Twin disc 509 Ratio: 3:1Ratio: 3:1 (or Doosan)
AUXILIARY MAIN GENERATING SET 2 x Betamarine20kVA (or up to 130 kVa)
TANK CAPACITIES
FRESH WATER 2.1 m3
SEWAGE (black and grey water 1,8 m3)
FUEL up to 12 m3
FISH STORAGE
Ice storage 5.5m3
Frozen store up to 28,4 m3
Freezer type: plates
(Optional: RSW system, air hold cooling system, fishpump, storage for isothermal containers 700L: H 860 mm x L 1200 mm x B 1000 mm)
FISHING EQUIPMENT
(depends on customer requirements; the vessel is designed as a fishing boat for commercial fishing using two methods: nets/trawls or long lines, crab and other traps, purse seine, drift nets, stern trawl ).
Below is a list of possible fishing equipment. For example :
NETWINCHES 2 x split trawl winches 120HP, winch drum for 2100m, wire16.5mm, hauling speed 1.5m/s
FISH FOUNDER FURUNO FCV 688
ELECTRICITY AND MARINE ELECTRONICS
(depends on customer requirements).
For example equipment options:
LIGHTING LED 24V
FLOODLIGHT 5000 lumens
RADAR KODEN MDC 2920P
RADIO Standard horizon GX 1200E
GPS/CHAT PLOTTER FURUNO GP1870
